Claw pump GV80
The characteristic of GV series claw pump is clean and clean. You don't need to dispose of or recycle contaminated waste oil, and you don't need frequent oil changes or disposal, significantly reducing your environmental impact. GV series claw pump is mainly used in high vacuum pump, refrigeration or air conditioning, heat treatment, metallurgical process, drug freeze drying, lithium battery, semiconductor, film coating and other industries.
Classification:
Edward
Dry pump for industrial use
claw type
GV
Key words:
Edward
Contact Us
- Product features and uses
- Product parameters and graphs
-
| Features
Rugged and Reliable : The pump is used to handle large amounts of condensable steam and particle loads, and provides reliable and stable pumping performance, while minimizing maintenance requirements and reducing cost of ownership
Environmental protection : The GV series cleaning pump is characterized by cleanliness. You don't need to dispose of or recycle contaminated waste oil, and you don't need frequent oil changes or disposal, significantly reducing your environmental impact.| Use1. Combined application: Pre-pump for high vacuum applications
2. In consumer products: Flat panel displays, refrigeration and air conditioning
3. In industry: cylinder emptying, heat treatment, vacuum drying and distillation, vacuum metallurgy process, system emptying, drying and backfilling
4, in chemistry and food: drug freeze drying,
5, in lithium battery, semiconductor: surface treatment, Film coating technology, vacuum drying and distillation -
| specification parameter
type GV80 GV100 extraction speed (m/h) 50Hz 80 110 60Hz 94 / ultimate pressure Pa ≦ 3 ≦ 0.6 full load power (KW) at ultimate pressure 3.6 2.6 at peak pumping load 5.8 4.5 Maximum Allowable Outlet Pressure bar (g) 0.5 Pump Motor Rated Power KW 4 Protection Level IP 55 42 Electrical Supply Options EU-US-CN 50/60Hz,400V/50Hz - 460V/60Hz - 380V/50Hz
ASIA 50/60Hz 200V/50Hz, 200V/60Hz, 380V/60Hz

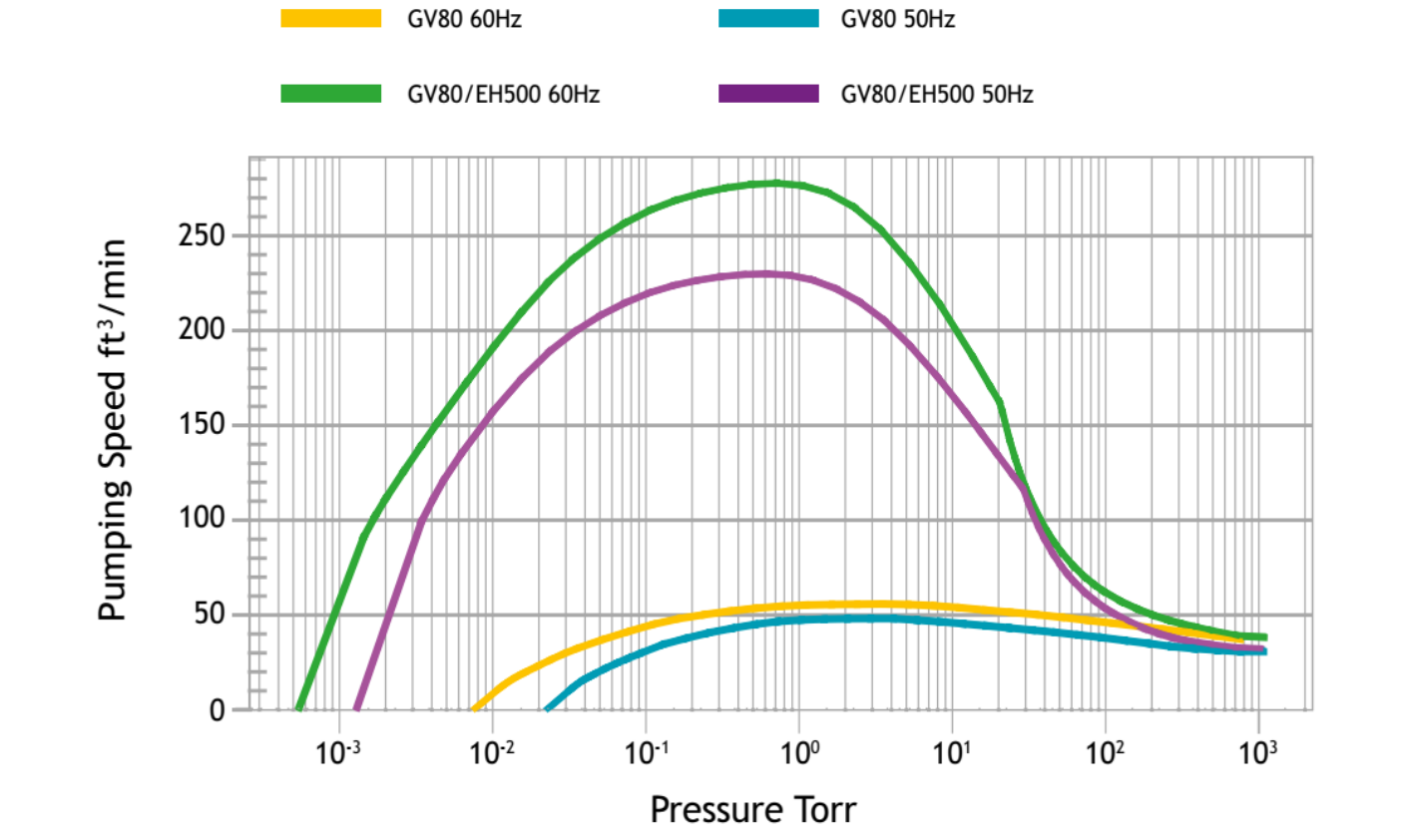

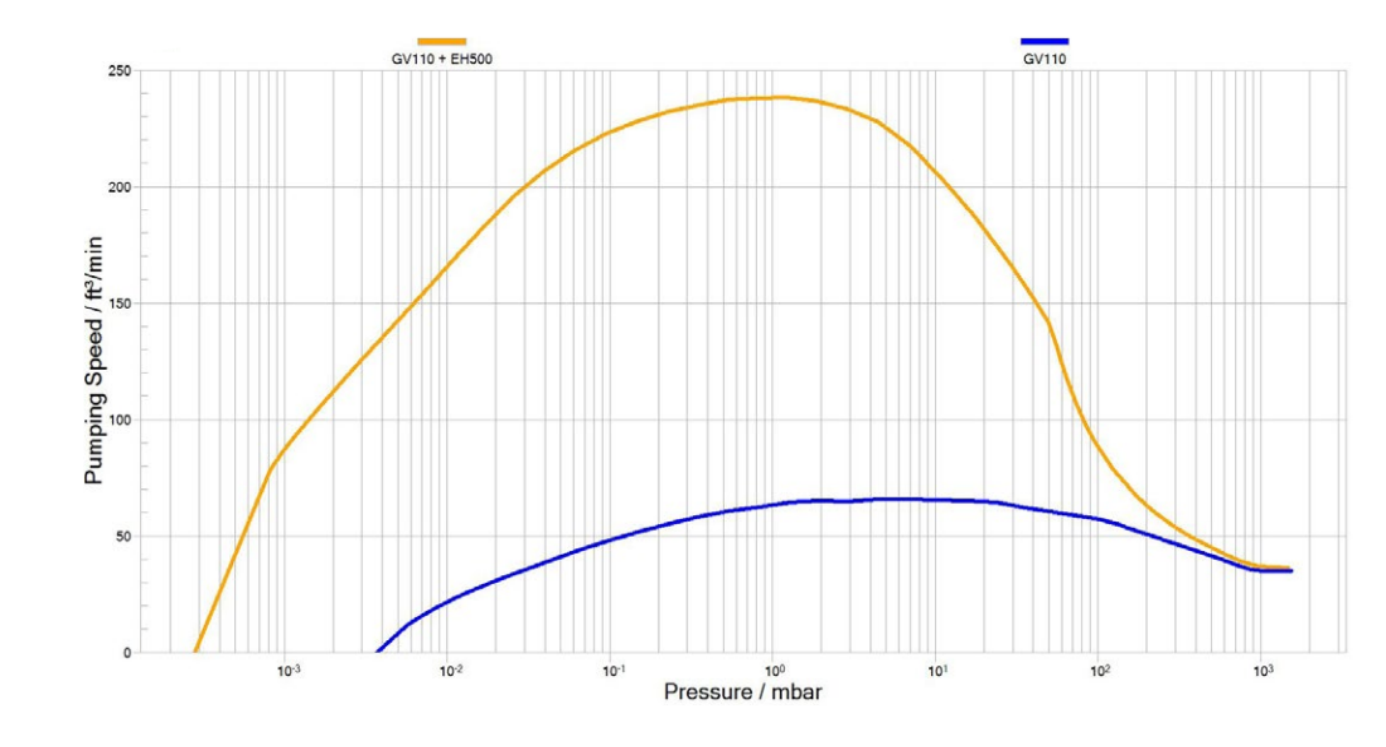

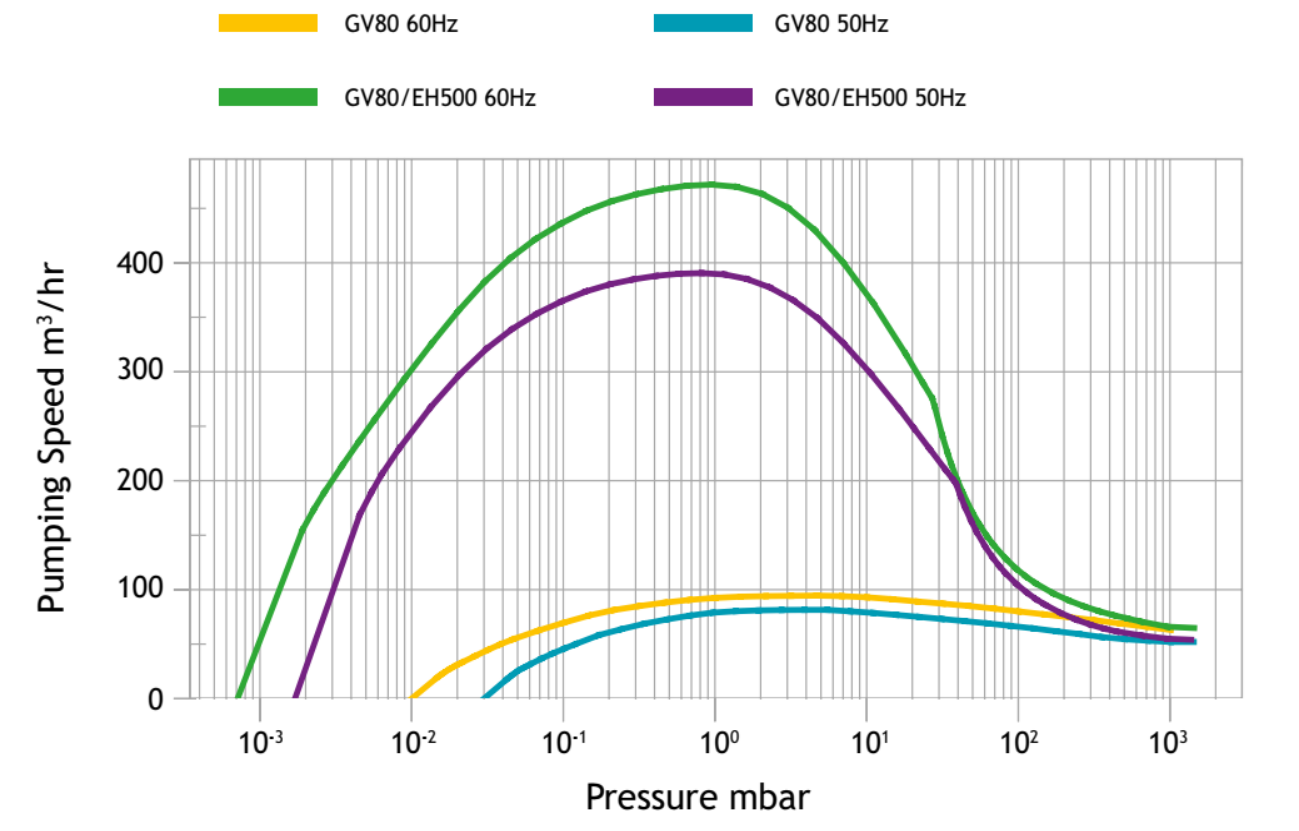

Note: Please refer to the part number of the specific voltage product.Cooling / Water Water Overall Dimension (LxWxH) mm 860 x 607 x 344 1060 x 502 x 316 Cooling Water Flow (L) 8 5 supply pressure (upper limit)(bar.a) 8 cross-pump pressure difference (lower limit (bar.a) 2.1 temperature c 5-35 connection (IN) 1/2 "quick connect coupling (mating piece provided) connection port (OUT) 1/2" quick connect plug (mating piece provided) purge gas (N2 or CDA) pressure (bar.a) 0.5 Light Load (sl/min) 15 Connection 1/4 "Quick Connect Couplings (Pairings Provided) Exhaust Back Pressure (Upper Limit) bar.a 1.3 Noise Value (with Exhaust Silencer) dB(A) <75 <78 inlet ISO 40 40 outlet NW 40 / weight kg 165 210 Preheating Time to Pump Operating Temperature Minutes 15 Typical Pump Speed -50Hz Power Supply r/min 3000 4100 Typical Pump Speed -60Hz Power Supply r/min 3600 4100 lubrication flow (L) 0.4 0.4 hydrocarbon SHC 629 SHC 629 PEPE YVAC 25/6 / Ambient Operating Temperature Range C 0 to 40 Ambient Operating Humidity Upper Limit Relative Humidity Full Humidity 80% Remarks | Graph
