Scroll pump IDSP10
Scroll vacuum pump is a new generation of oil-free mechanical pump, which has the advantages of simple structure, good sealing performance and high ultimate vacuum. IDSP series scroll pump is mainly used for ordinary clean vacuum applications, molecular pump pre-pump, laboratory vacuum system, analytical instruments, laser, gas recovery and recycling, semiconductor, photovoltaic, coating, industrial/battery production and other industries.
Classification:
scroll dry pump
scroll dry pump
Key words:
scroll dry pump
Contact Us
- Product features and uses
- Product parameters and graphs
-
| Features
1. Scroll vacuum pump is a new generation of oil-free mechanical pump. It has the advantages of simple structure, good sealing performance, high ultimate vacuum, etc.
2. It has low operating cost, long working life, Significant characteristics of high reliability and low noise, etc., have incomparable advantages in the field of oil-free cleaning applications,
3. IDSP series scroll dry pump is a scroll dry pump with excellent performance and obvious price competitive advantage launched by Bausch Vacuum according to the downstream application characteristics of domestic and foreign markets.
| UseCommon Clean Vacuum Obtaining Application, Molecular Pump Prestage Pump, Laboratory Vacuum System, Analytical Instrument, Vacuum Leak Detection/He Mass Spectrometry Leak Detection, Beam Line/High Energy Physics, Scientific Research, Clinical Medical Equipment, Distillation/Extraction/Filtration, Laser, Gas Recovery and Recycling, Semiconductor (LED/LCD Crystal Furnace), Photovoltaic (Single Crystal Furnace/Multi crystal furnace), coating (PVD/CVD), industrial/battery production, glove box/exhaust table, electron beam welding/laser welding.
-
| specification parameter

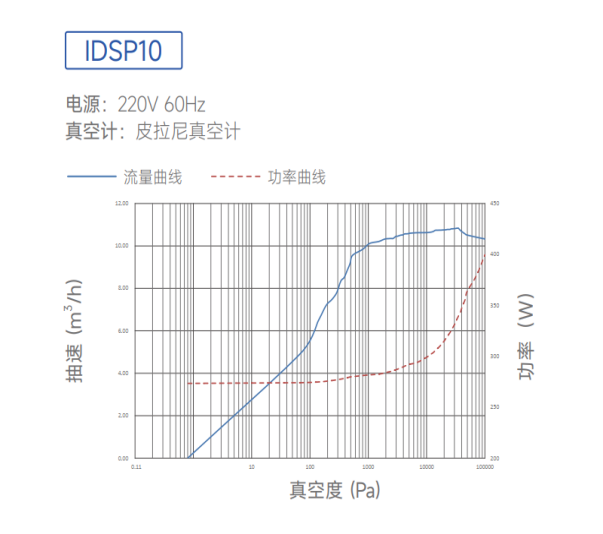

type IDSP6 IDSP10 IDSP16 IDSP36 IDSP45 theoretical pumping speed L/s 2 3 4 10 12.5 (m/h) 6 10 16 36 45 limit pressure Pa 3 0.8 0.8 5 leakage rate mbar l/s <1 10 -6 pa m/s <1 *10 -7 noise dB(A) 54 56 motor power kW 0.4 1.1 inlet connection - KF25 KF40 outlet connection - KF25 inlet pressure - Atmospheric Pressure Motor Voltage V Single Phase 100-120/200-220V Motor Speed rpm 1800 Noise dB(A) oil upper limit L 0.7 0.7 1.1 1.2 1.7 lower limit water vapor treatment capacity - g/h 100 136 268 200 200 cooling mode - air cooling overall dimensions (L * W * H) mm 430*274*305 430*274*305 (old version) 574*335*368 430*274*313 (old version) ambient temperature C 5~40 10~40 Weight kg - 28 29 56 Remarks | graph
